Zehnder Arteplano Premium

Zehnder Arteplano Premium

£1,127.16
£1,127.16
Sale Sold out
Includes Wall Brackets
VAT included. Shipping calculated at checkout.
Select Size mm

BTU Calculator

btu-calculator

Download PDF SpecDownload PDF Spec

Delivery:
Please refer to the technical datasheet download linked above for details of stocked sizes/colours versus items subject to a production leadtime
Heat output @ ΔT=50K
406 - 954 Watts
1385 - 3255 BTU

SKU: VZAP-140-4

1413x305 (VZAP-140-4) 43875941417212
Width: 305mm
Height: 1413mm
Weight: 17.5kg
Delta 50 Watts: 406 Watts
Delta 50 BTU: 1385 BTU
Postition: Vertical
1413x453 (VZAP-140-6) 43875941449980
Width: 453mm
Height: 1413mm
Weight: 25kg
Delta 50 Watts: 588 Watts
Delta 50 BTU: 2006 BTU
Postition: Vertical
1413x601 (VZAP-140-8) 43875941482748
Width: 601mm
Height: 1413mm
Weight: 32kg
Delta 50 Watts: 790 Watts
Delta 50 BTU: 2695 BTU
Postition: Vertical
1613x305 (VZAP-160-4) 43875941515516
Width: 305mm
Height: 1613mm
Weight: 20.5kg
Delta 50 Watts: 550 Watts
Delta 50 BTU: 1877 BTU
Postition: Vertical
1613x453 (VZAP-160-6) 43875941548284
Width: 453mm
Height: 1613mm
Weight: 28.5kg
Delta 50 Watts: 700 Watts
Delta 50 BTU: 2388 BTU
Postition: Vertical
1613x601 (VZAP-160-8) 43875941581052
Width: 601mm
Height: 1613mm
Weight: 36.5kg
Delta 50 Watts: 865 Watts
Delta 50 BTU: 2951 BTU
Postition: Vertical
1813x305 (VZAP-180-4) 43875923689724
Width: 305mm
Height: 1813mm
Weight: 22kg
Delta 50 Watts: 790 Watts
Delta 50 BTU: 2695 BTU
Postition: Vertical
1813x453 (VZAP-180-6) 43875923722492
Width: 453mm
Height: 1813mm
Weight: 31.5kg
Delta 50 Watts: 840 Watts
Delta 50 BTU: 2866 BTU
Postition: Vertical
1813x601 (VZAP-180-8) 43875923755260
Width: 601mm
Height: 1813mm
Weight: 41kg
Delta 50 Watts: 954 Watts
Delta 50 BTU: 3255 BTU
Postition: Vertical

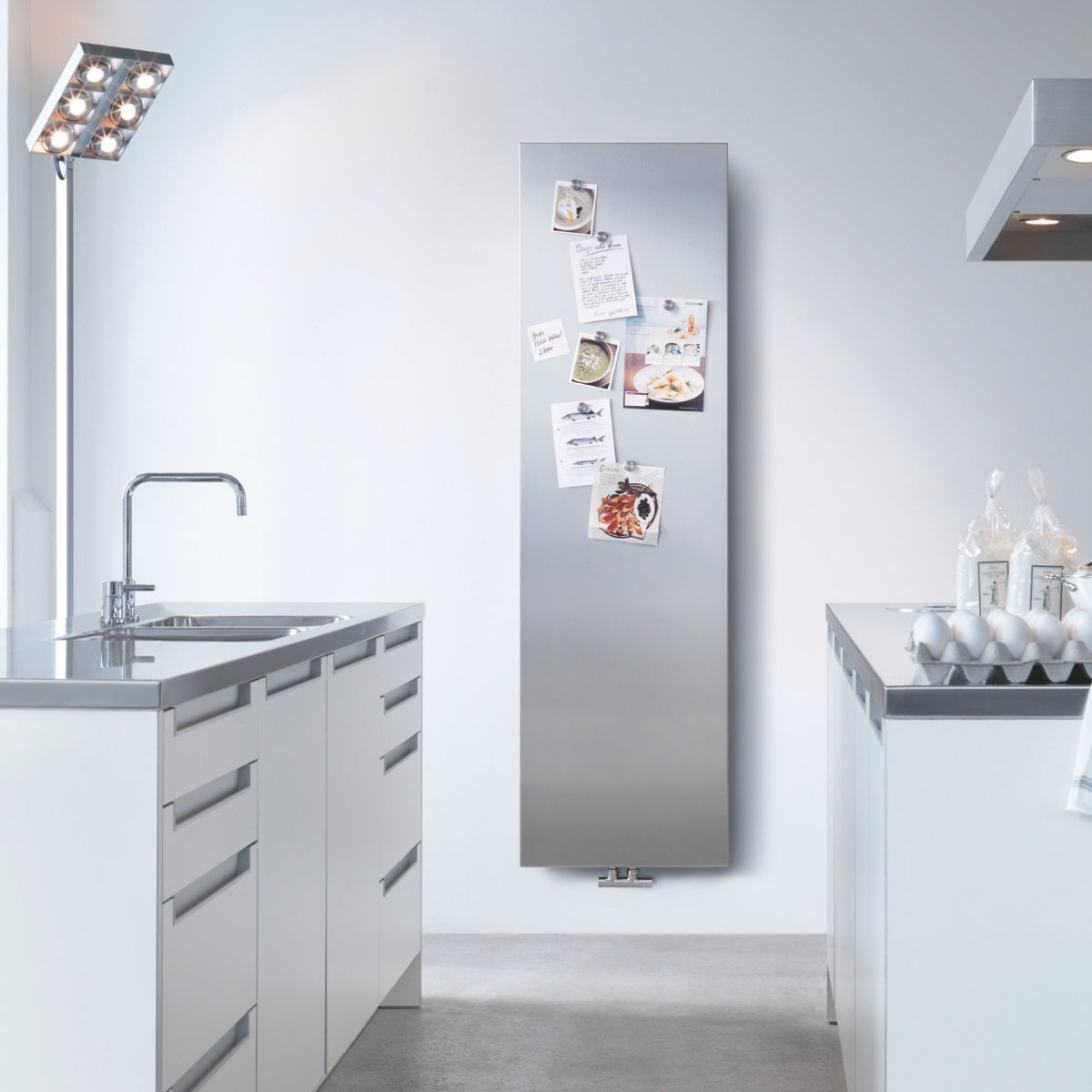

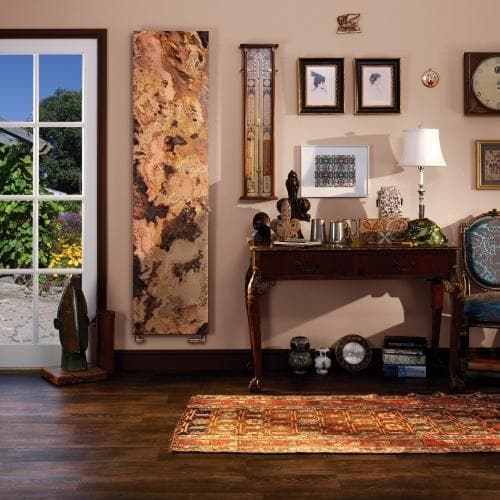

This radiator puts its best face forward, as the heating tubes are concealed behind a beautiful sleek front plate. An enhancement over the Arteplano, the Arteplano Premium comes with side panels to provide an aesthetically pleasing finish.  Choose a colour to pop or blend, or take home a true original in brass or copper - each model is individually etched so every radiator is unique. You can use the radiator in a bathroom or kitchen with the addition of the optional, brushed stainless steel towel rail to our vertical models.
